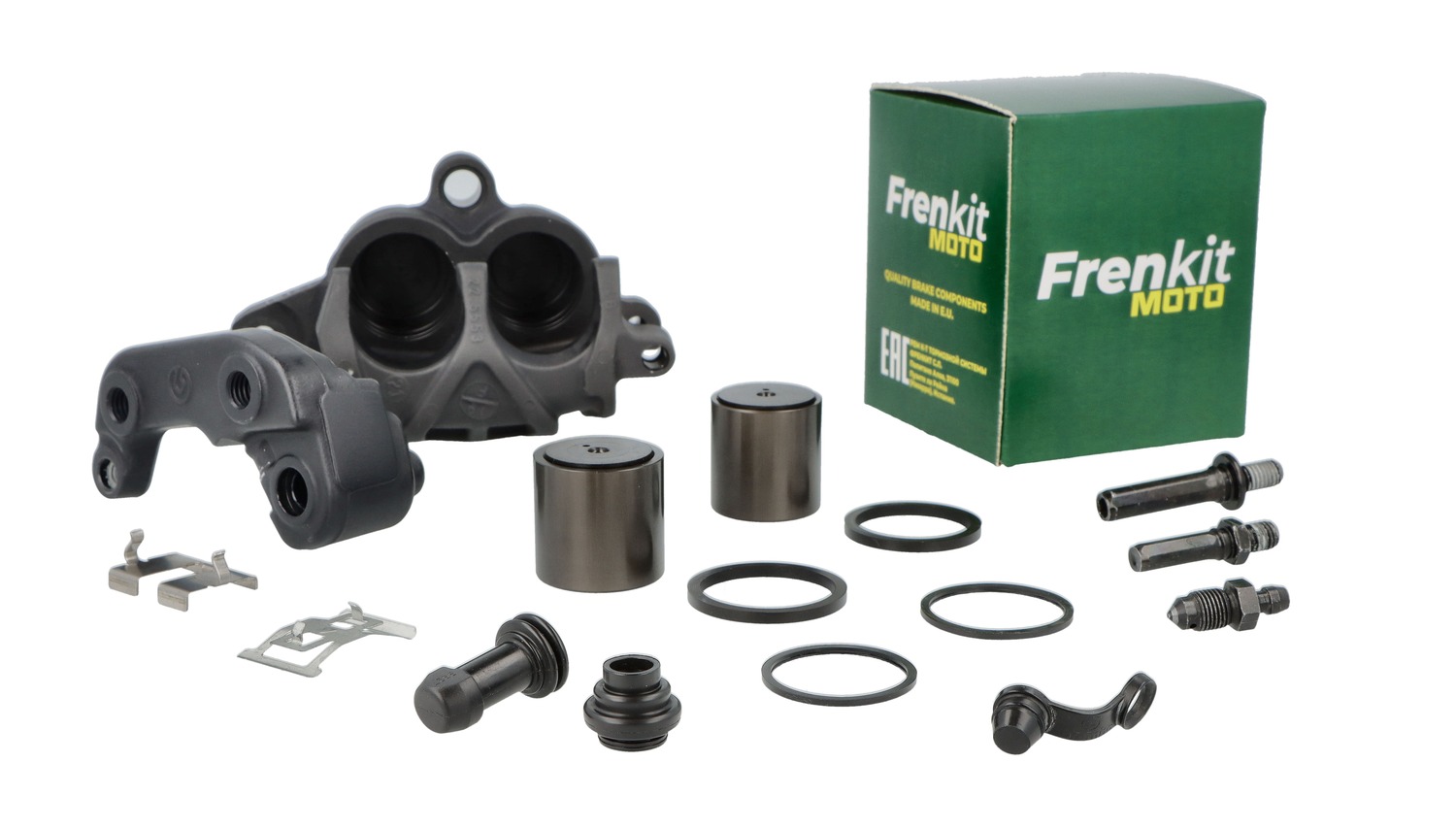

Motorcycle brake calipers are crucial components in a motorcycle's braking system, responsible for clamping down on the brake discs to generate the stopping force. These calipers consist of several key parts, each playing a specific role in the braking process. Here are the main motorcycle caliper brake parts:
Housing or Body
The outer shell that encases the internal components of the caliper.
Pistons
Cylindrical components that move within the caliper body when brake pressure is applied. Pistons push the brake pads against the brake disc to create friction and slow down the motorcycle.
Seals and O-Rings
Rubber or synthetic components that create a tight seal around the pistons and between the inner parts of the caliper, preventing brake fluid leaks and contamination.
Brake Pads
Friction material attached to the caliper, which makes contact with the brake disc when the brakes are applied. Brake pads wear over time and need regular inspection and replacement.
Caliper Mounting Bolts
Bolts used to secure the caliper to the motorcycle's fork or swing arm. These bolts should be torqued to the manufacturer's specifications for proper function and safety.
Caliper Bracket
A bracket that holds the caliper in place and attaches it to the motorcycle's fork or frame. The bracket ensures proper alignment with the brake disc.
Guide Pins or Sliders
Components that allow the caliper to move slightly, ensuring even pressure on both sides of the brake disc. These pins should be lubricated to prevent sticking.
Dust Boots
Protective rubber covers that shield the caliper components from dust, dirt, and debris, helping to maintain the integrity of the braking system.
Bleeder Valve
A valve on the caliper that allows air to be purged from the brake system during bleeding. Regular bleeding is essential to remove air and maintain proper brake function.
Banjo Bolt and Washers
Connects the brake line to the caliper, allowing brake fluid to flow inside it. The banjo bolt is typically equipped with washers to create a tight seal.
Retaining Clips or Pins
Clips or pins that secure the brake pads in place within the caliper. These components prevent the pads from rattling or shifting during operation.
Understanding the function and condition of each of these motorcycle caliper brake parts is crucial for ensuring effective and reliable braking performance. Regular inspection, maintenance, and, if necessary, replacement of worn or damaged components are essential for the safety of the rider and the proper functioning of the motorcycle's braking system.
